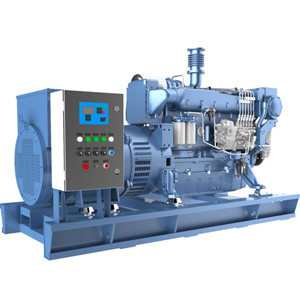

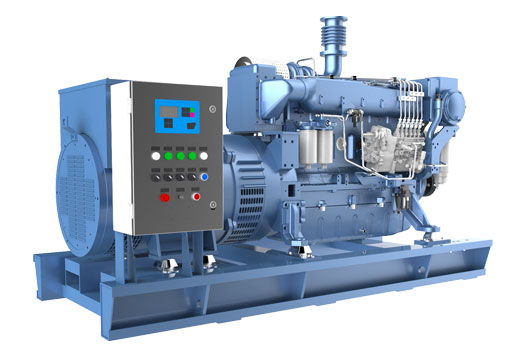

Weichai Medium Speed Marine Diesel Generator Set
Product advantage
The products of weichai Marine generating set are mainly divided into main generating set and emergency generating set according to the usage, the main generating set power is 16-8730kw, the emergency generating set power range is 30-900kw.The main generator set is divided into diesel generator set and gas generator set according to the fuel. The diesel generator set includes Yang chai series, daitz series, steyr series, blue engine series, beaudouin series, whm160/170 series and cw200/250 series product.Gas generator sets are mainly dowitz series.The manufacture and test of Marine diesel generator sets are carried out according to the general technical conditions of GB/ t13032-2010.
Warm tips: this spectrum and introduction are mainly 50Hz products, and 60Hz products with corresponding power can be produced.
The product spectrum
High speed Marine diesel generator set
Model
Unit common power /kW
Unit continuous power /kW
Diesel engine model
Emission standards
Overall dimension /mm
Net weight/kg
CCFJ200J-W*
200
200
WHM6160D258-1
IMOⅡ
3388*1227*1977
4892
CCFJ250J-W*
250
240
WHM6160D300-1
IMOⅡ
3445*1227*1977
5010
CCFJ300J-W*
300
240
WHM6160D330-1
IMOⅡ
3540*1227*1977
5126
CCFJ300J-W*
300
300
WHM6160D350-5
IMOⅡ
3233*1312*1984
5132
CCFJ350J-W*
350
340
WHM6160D426-5
IMOⅡ
3466*1236*2001
5363
CCFJ400J-W*
400
340
WHM6160D456-5
IMOⅡ
3466*1236*2001
5363
CCFJ450J-W*
450
410
WHM6160MD500-5
IMOⅡ
3419*1146*1976
6312
CCFJ500J-W*
500
410
WHM6160MD556-5
IMOⅡ
3649*1312*2026
6539
CCFJ250J-W*
250
240
X6170ZCD280-1
IMOⅡ
3288*1255*1977
5152
CCFJ300J-W*
300
240
X6170ZCD330-1
IMOⅡ
3241*1255*1977
5307
CCFJ400J-W*
400
400
8170ZCD441-1
IMOⅡ
4424*1493*2277
6251
CCFJ450J-WMW
450
400
CW6200ZD-39
IMOⅡ
4550*1800*2450
11500
CCFJ500J-WMW
500
440
CW6200ZD
IMOⅡ
4550*1800*2450
11500
CCFJ600J-WMW
600
510
XCW6200ZD
IMOⅡ
4600*1800*2450
12000
CCFJ700J-WMW
700
600
XCW6200ZD-10
IMOⅡ
4600*1800*2450
12500
CCFJ800J-WMW
800
710
XCW8200ZD-1
IMOⅡ
5300*2000*2500
14000
CCFJ900J-WMW
900
760
XCW8200ZD-10
IMOⅡ
5300*2000*2500
14000
CCFJ1000J-WMW
1000
830
XCW8200ZD-2
IMOⅡ
5300*2000*2500
14000
CCFJ1200J-WMW
1200
1040
XCW12V200ZD
IMOⅡ
5400*1900*3000
20000
CCFJ1500J-WMW
1500
1320
CW16V200ZD
IMOⅡ
6500*1900*3000
25000
CCFJ1200J-WMX
1200
1100
CW6250ZLD
IMOⅡ
6150*1280*3100
24150
CCFJ1700J-WMX
1700
1470
CW8250ZLD
IMOⅡ
7200*1280*3100
28000
Note: dimensions and weight are for reference only.Light Seine vessels, frozen fishing boats and other sustainable use vessels in the selection of units please contact the relevant personnel specific docking.
